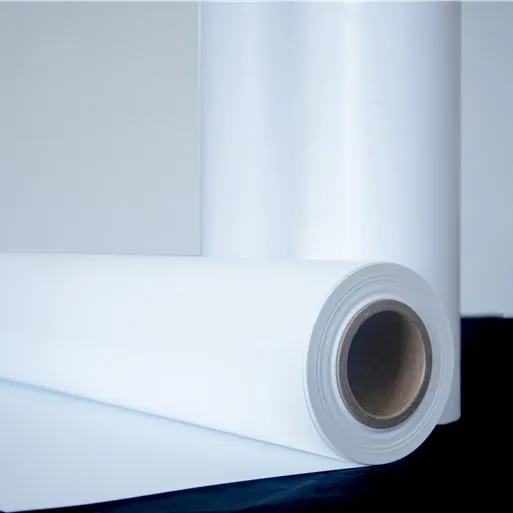

MOW1 Solar Backsheet
The Mow1 solar backsheet is a high-performance product developed based on the advanced European RENOLIT REFLEXOLAR technology platform. Manufactured using innovative multi-layer co-extrusion technology, it provides comprehensive long-term protection for photovoltaic modules. Through unique material formulations and process design, this product delivers excellent performance while achieving higher environmental value.
Specification & details

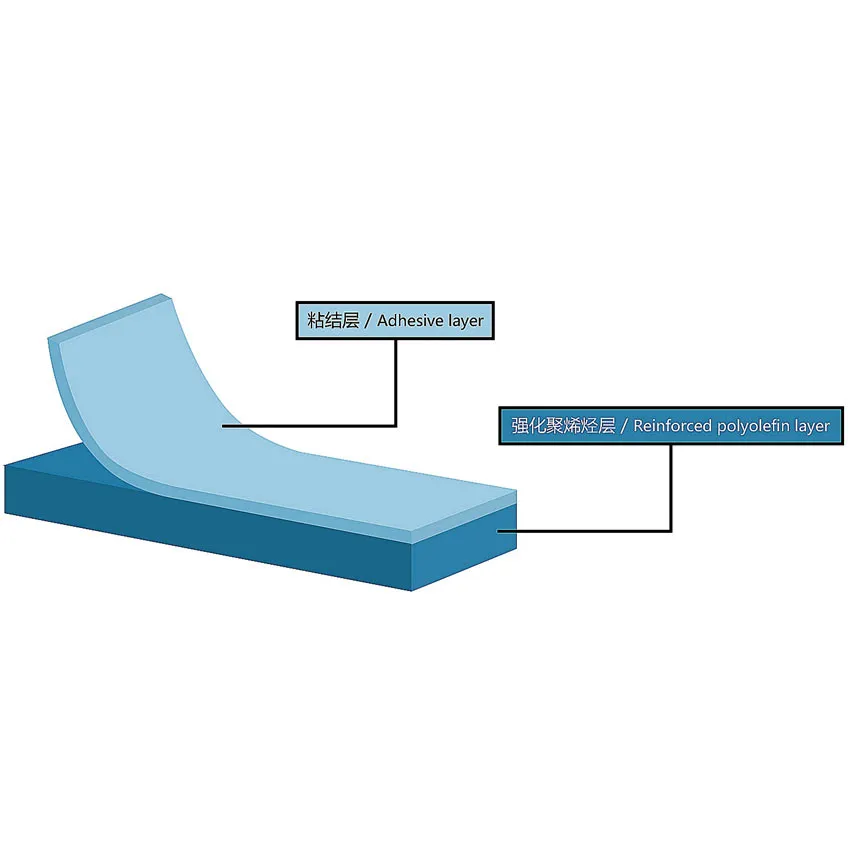

Innovative Material Structure and Manufacturing Process The Mow1 backsheet is produced using precision multi-layer co-extrusion technology: - 5-layer specially designed polyolefin composite structure - Interlayer bonding achieved through molecular-level co-crystallization - Functional layer thickness precisely controlled within ±5μm - Continuous production process ensures product consistency
Outstanding Durability Performance
1. Aging Resistance
- Specially modified polyolefin material formulation
- UV stabilizer content optimized to ideal ratio
- >85% mechanical property retention after 3000h damp heat aging
- Passes 150kWh/m² UV accelerated aging test
2. Interlayer Stability
- Co-crystallization interface bonding force exceeds 200N/cm
- No delamination after 1000h at 85°C/85%RH
- No abnormalities after 200 thermal cycles (-40°C~85°C)
- Maintains intact structure after 1000h salt spray test
Professional Protective Characteristics
1. Barrier Properties
- Stable water vapor transmission rate of 1.2-1.5g/m²/day
- Acetic acid permeability >85%
- Effectively delays PID occurrence
- Reduces cell corrosion risk
2. Environmental Adaptability
- Passes -40°C low temperature impact test
- Passes 85°C high temperature storage test
- Excellent acid/alkali resistance (pH3-11)
- Outstanding salt spray corrosion resistance
Green Environmental Advantages
1. Sustainable Features
- 100% recyclable material composition
- 20% reduction in production energy consumption
- Over 30% reduction in carbon footprint
- Complies with EU RoHS environmental directive
2. Life Cycle Assessment
- Fully recyclable at module end-of-life
- Recycled materials can be reused
- No harmful substance release
- TUV environmental certification
Strict Quality Assurance
Each production batch undergoes
- Raw material composition analysis
- Production process parameter monitoring
- Finished product full performance testing
- Regular aging test verification
- Quality traceability system records
Wide Range of Applications
Specially recommended for
- Utility-scale solar power plants
- Distributed rooftop projects
- Coastal power stations in high humidity areas
- Acid rain-prone regions
- Areas with strict environmental requirements
